Comparison of low rank matrix with LDSC slopes / intercepts

Abstract

LDSC slopes give genetic correlation (signal) and intercepts give noise covariance. In this notebook, we quantify how the low rank matrix tracks signal and noise.

import json
from pathlib import Path
import pickle

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt
from pymir import mpl_stylesheet
from pymir import mpl_utils
mpl_stylesheet.banskt_presentation(splinecolor='black', dpi=300, colors='kelly')

from matplotlib import colormaps as mpl_cmaps
import matplotlib.colors as mpl_colors
from mpl_toolkits.axes_grid1 import make_axes_locatable

from scipy.stats import spearmanr, rankdata, pearsonr
from clorinn import MatrixFactorization

Functions for loading results / matrices

def normalize_trait_name(name):
    rename_map = {
        "Saxena": "Daytime_sleepiness",
    }
    if not isinstance(name, str):
        return name
    name = name.replace("-", "_")
    name = rename_map.get(name, name)
    return str(name)


def get_matrix_df_from_json(fpath, check_sanity=True):
    with open(Path(fpath), "r") as f:
        d = json.load(f)
    rows = []
    traits = []
    for a_vs_b, val in d.items():
        trait_a, trait_b = ([normalize_trait_name(x) for x in a_vs_b.split("_vs_")])
        traits.append(trait_a)
        traits.append(trait_b)
        rows.append({
            "trait_a": trait_a,
            "trait_b": trait_b,
            "rg": val,
        })
    traits = sorted(list(set(traits)))
    df = pd.DataFrame(rows)

    n = len(traits)
    R = pd.DataFrame(np.nan, index=traits, columns=traits, dtype=float)
    R.values[R.index.get_indexer(df["trait_a"]),
             R.columns.get_indexer(df["trait_b"])] = df["rg"].to_numpy()
    R.values[R.index.get_indexer(df["trait_b"]),
             R.columns.get_indexer(df["trait_a"])] = df["rg"].to_numpy()

    if check_sanity:
        # Max and min values
        print(f"max={R.max().max():.3g}, min={R.min().min():.3g}")
        # Symmetry sanity (in case the input accidentally contains BOTH directions)
        asym = np.nanmax(np.abs(R.values - R.values.T))
        print(f"max |R - R.T| = {asym:.3g}")   # expect 0.0 if each pair listed once

        # Coverage: how many off-diagonal pairs are actually populated?
        off = ~np.eye(len(traits), dtype=bool)
        print(f"populated off-diagonal fraction: {np.isfinite(R.values[off]).mean():.3f}")

    return R

def load_zscore(zscore_path):
    df = pd.read_csv(Path(zscore_path), header=0, index_col=0, dtype={0: str})
    df.index = df.index.map(str)
    df.columns = df.columns.map(str)
    return df

def load_categories(path):
    with open(path, 'r') as f:
        data = json.load(f)
    return data

def impute_by_category(df, traits_meta):
    categories = {t:meta['group'] for t,meta in traits_meta.items()}
    cats = df.index.map(categories)
    group_means = df.groupby(cats).transform('mean')
    df_imputed = df.fillna(group_means)

    # the rest has to be filled by column means
    arr = df_imputed.to_numpy()
    col_means = np.nanmean(df.to_numpy(), axis=0)
    rows, cols = np.where(np.isnan(arr))
    arr[rows, cols] = np.take(col_means, cols)
    return arr

def load_fit_result(fit_result_dir, prefix, r):
    path = Path(fit_result_dir) / f"{prefix}_r{r}.pkl"
    with open(path, 'rb') as f:
        fit_artifact = pickle.load(f)
    return fit_artifact["final_result"]

Functions for comparing X with noise/signal from LDSC

def cov2corr(M, eps=1e-12):
    M = np.asarray(M, float)
    M = 0.5 * (M + M.T)

    d = np.sqrt(np.clip(np.diag(M), eps, None))
    R = M / np.outer(d, d)
    np.fill_diagonal(R, 1.0)
    return R

def linfit_residual(a, b):
    # residual of a after linear fit on covariate b
    B = np.c_[np.ones_like(b), b]
    beta = np.linalg.lstsq(B, a, rcond=None)[0]
    return a - B @ beta


def recovery_metrics(
    X, ids, Rg_df, intercept_df,
    Rg_se_df=None, rg_clip=1.0, se_max=0.5,
    n_perm=10000, seed=0, center_X=True):

    def aligned(M):
        return M.reindex(index=ids, columns=ids).to_numpy(float)

    X = np.asarray(X, float)

    if center_X:
        X = X - X.mean(axis=1, keepdims=True)

    # recovered trait-trait correlation structure in data space
    C = cov2corr(X @ X.T)

    # LDSC genetic correlation
    Rg = aligned(Rg_df)
    Rg = 0.5 * (Rg + Rg.T)
    Rg = np.clip(Rg, -rg_clip, rg_clip)
    Rg_se = aligned(Rg_se_df) if Rg_se_df is not None else None

    # LDSC intercept / noise covariance, converted to correlation scale
    S = cov2corr(aligned(intercept_df))

    iu = np.triu_indices(len(ids), k=1)
    c, rg, noise = C[iu], Rg[iu], S[iu]
    ok = np.isfinite(c) & np.isfinite(rg) & np.isfinite(noise)
    if Rg_se is not None:
        ok &= np.isfinite(Rg_se[iu]) & (Rg_se[iu] < se_max)

    c_rank     = rankdata(c[ok])
    noise_rank = rankdata(noise[ok]) # control = noise rank, fixed across perms
    rg_rank    = rankdata(rg[ok])

    # partial Spearman(C, Rg | noise)
    res_c_noise  = linfit_residual(c_rank, noise_rank)
    res_rg_noise = linfit_residual(rg_rank, noise_rank)
    partial_rg   = pearsonr(res_c_noise, res_rg_noise)[0]

    # partial Spearman(C, noise | Rg)
    res_c_rg     = linfit_residual(c_rank, rg_rank)
    res_noise_rg = linfit_residual(noise_rank, rg_rank)
    partial_noise = pearsonr(res_c_rg, res_noise_rg)[0]

    vs_rg    = spearmanr(c[ok], rg[ok]).statistic
    vs_noise = spearmanr(c[ok], noise[ok]).statistic

    # rng = np.random.default_rng(seed)
    # n = len(ids)
    # null = np.empty(n_perm)
    # for b in range(n_perm):  # partial Mantel: permute model trait labels
    #     perm = rng.permutation(n)
    #     Cp = C[np.ix_(perm, perm)]
    #     cc = Cp[iu][ok]
    #     cc_rank = rankdata(cc)
    #     res_cc = linfit_residual(cc_rank, noise_rank)
    #     null[b] = pearsonr(res_cc, res_rg_noise)[0]
    # p = (np.sum(np.abs(null) >= abs(partial)) + 1)/(n_perm+1)

    clean = ok & (np.abs(noise) < 0.05)
    vs_clean = spearmanr(c[clean], rg[clean]).statistic
    return dict(
        partial_rg_given_noise=partial_rg,
        partial_noise_given_rg=partial_noise,
        # partial_rg_given_noise=p,
        spearman_vs_rg=vs_rg,
        spearman_vs_noise=vs_noise,
        spearman_vs_rg_clean=vs_clean,
        n=int(ok.sum()),
        n_clean=int(clean.sum()))

Build recovery dataframes

• \mathbf{S} = \mathbb{I}
• \mathbf{S} = LDSC intercepts
• \mathbf{S} = Shielded sampling covariance
• \mathbf{S} = GLEANR sampling covariance

analysis_root = "/gpfs/commons/groups/knowles_lab/data/PsychGen/analysis"
data_root = "/gpfs/commons/groups/knowles_lab/data/PsychGen/input"
version_  = "v1.1" # 78 traits

R    = get_matrix_df_from_json(Path(data_root) / "ldsc_results/rg.txt")
np.fill_diagonal(R.values, 1.0)

R_se = get_matrix_df_from_json(Path(data_root) / "ldsc_results/rg_se.txt")
R_p  = get_matrix_df_from_json(Path(data_root) / "ldsc_results/rg_p.txt")

G    = get_matrix_df_from_json(Path(data_root) / "ldsc_results/gencov.txt")
G_se = get_matrix_df_from_json(Path(data_root) / "ldsc_results/gencov_se.txt")

noise_path  = Path(data_root) / "pgc_v1.1/sampling_covariance_v1_1.csv"
zscore_path = Path(data_root) / "pgc_v1.1/zscore_v1_1.csv"
S = load_zscore(noise_path)
Z = load_zscore(zscore_path)
traits_meta = load_categories(Path(data_root) / "trait_metadata.json")
trait_names = list(Z.index)

model_variants = {
    'identity': {
        'result_dir': Path(analysis_root) / "v1.1/low_rank_fit/fit_result",
        'prefix': "pgd_fw_nnm",
    },
    'intercepts': {
        'result_dir': Path(analysis_root) / "v1.1/low_rank_fit/fit_result",
        'prefix': "pgd_fw_nnm_corr",
    },
    'shielded': {
        'result_dir': Path(analysis_root) / "v1.3/low_rank_fit/fit_result",
        'prefix': "pgd_fw_nnm_corr",
    },
    'shrinked': {
        'result_dir': Path(analysis_root) / "v1.5/low_rank_fit/fit_result",
        'prefix': "pgd_fw_nnm_corr",
    },
}

rank_list = [64, 128, 256, 323, 406, 512,
          645, 813, 1024, 1290, 1625, 2048,
          2580, 3251, 4096, 5161, 6502, 8192, 16384]

def get_data_for_nucnorm(fit_result_dir, prefix, r_choose):
    fit_res = load_fit_result(fit_result_dir, prefix, r_choose)
    return fit_res.X

def build_dataframe_from_X_dict(X_dict, trait_ids, R, S, R_se):
    rows = {}
    for nucnorm, X in X_dict.items():
        res = recovery_metrics(X, trait_ids, R, S, R_se)
        rows[nucnorm] = res
    return pd.DataFrame(rows).T

data = {vname: dict() for vname in model_variants.keys()}
for nucnorm in rank_list:
    for vname, vparams in model_variants.items():
        data[vname][nucnorm] = get_data_for_nucnorm(
            vparams['result_dir'], vparams['prefix'], nucnorm)

recovery_df = {}
for vname, vparams in model_variants.items():
    recovery_df[vname] = build_dataframe_from_X_dict(
        data[vname], trait_names, R, S, R_se)

recovery_df_raw = recovery_metrics(Z, trait_names, R, S, R_se)

max=3.87, min=-0.893
max |R - R.T| = 0
populated off-diagonal fraction: 0.949
max=10.8, min=0.00195
max |R - R.T| = 0
populated off-diagonal fraction: 0.949
max=0.999, min=0
max |R - R.T| = 0
populated off-diagonal fraction: 0.949
max=0.235, min=-0.104
max |R - R.T| = 0
populated off-diagonal fraction: 0.951
max=0.0508, min=0.0005
max |R - R.T| = 0
populated off-diagonal fraction: 0.951

def get_r_scaled(x, scale="log2"):
    x = np.asarray(x, dtype=float)
    powers = np.arange(np.ceil(np.log2(x.min())), np.floor(np.log2(x.max())) + 1)
    xlabels = 2 ** powers

    if scale == "log10":
        xscale = np.log10(x)
        xticks = np.log10(xlabels)
    elif scale == "log2":
        xscale = np.log2(x)
        xticks = np.log2(xlabels)
    else:
        xscale = x
        xticks = xlabels

    xlabel_str = [f"{r:g}" for r in xlabels]
    return xscale, xticks, xlabel_str

plot_variants = {
    'identity': {
        'label': "Isotropic",
        'tag_locs': [256, 512, 8192],
        'tag_dx': -0.012,
        'tag_dy': 0.0,
        'tag_ha': "right",
    },
    'intercepts': {
        'label': "LDSC Intercepts (Full)",
        'tag_locs': [512, 2580, 6502],
        'tag_dx': 0.012,
        'tag_dy': 0.0,
        'tag_ha': "left",
    },
    'shielded': {
        'label': "LDSC Intercepts (Shielded)",
        'tag_locs': [512],
        'tag_dx': -0.012,
        'tag_dy': 0.0,
        'tag_ha': "right",
    },
    'shrinked': {
        'label': "LDSC Intercepts (GLEANR pre-processing)",
        'tag_locs': [512],
        'tag_dx': -0.012,
        'tag_dy': 0.0,
        'tag_ha': "right",
    },
}

fig = plt.figure(figsize = (20,16))
gs  = fig.add_gridspec(nrows=2, ncols=2, wspace=0.2, hspace=0.4)
ax1 = fig.add_subplot(gs[0, 0])
ax2 = fig.add_subplot(gs[0, 1])
ax3 = fig.add_subplot(gs[1, 0])
ax4 = fig.add_subplot(gs[1, 1])

def make_spearman_plot(
    ax, xcolname, ycolname,
    xlabel, ylabel,
    show_raw_ref=False,
    line_colors=None,
):
    # plot_variants
    # recovery_df
    # recovery_df_raw

    if show_raw_ref:
        ax.scatter(recovery_df_raw[xcolname], recovery_df_raw[ycolname],
                   marker="*", s=100, label="Raw data")

    lines = {}
    for vname, vparams in plot_variants.items():
        df = recovery_df[vname]
        lines[vname], = ax.plot(df[xcolname], df[ycolname], 'o-', label=vparams['label'])

    if line_colors is None:
        line_colors = {vname: lines[vname].get_color() for vname in plot_variants.keys()}

    def make_tag_on_lines(df, rlist, dx, dy, color, ha='left'):
        for r in rlist:
            x, y = df.loc[r, xcolname], df.loc[r, ycolname]
            ax.annotate(f'r={r}', (x,y), (x+dx,y+dy), color=color, ha=ha, va='center')
    ax.axvline(0, color='gray', lw=1, ls='dotted')

    for vname, vparams in plot_variants.items():
        make_tag_on_lines(
            recovery_df[vname], vparams['tag_locs'],
            vparams['tag_dx'], vparams['tag_dy'],
            line_colors[vname],
            ha=vparams['tag_ha'],
        )

    ax.legend(handlelength=2)
    ax.set_xlabel(xlabel)
    ax.set_ylabel(ylabel)

    return line_colors

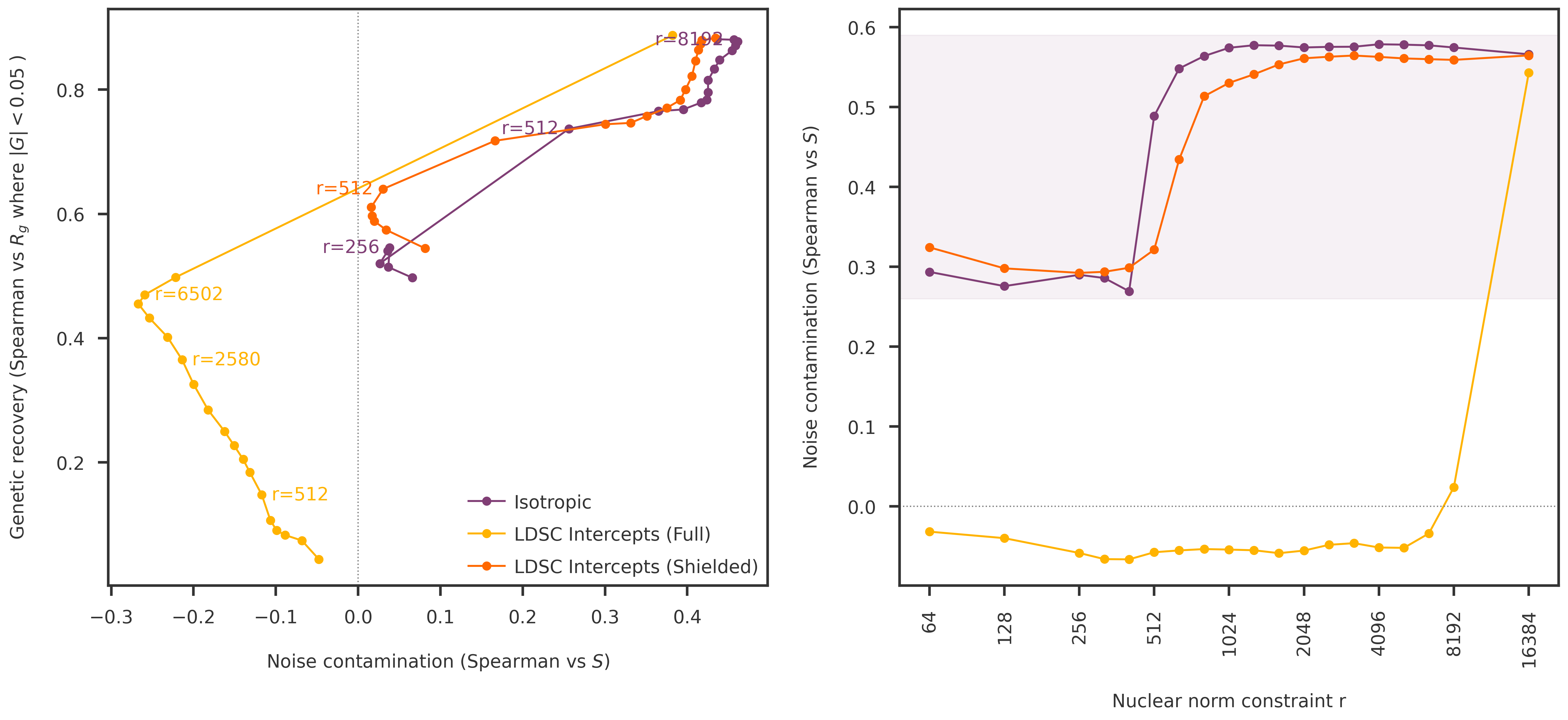

line_colors = make_spearman_plot(
    ax1,
    "spearman_vs_noise",
    "spearman_vs_rg",
    r"Noise contamination (Spearman vs $S$)",
    r"Genetic recovery (Spearman vs $R_g$)",
    show_raw_ref=True,
    line_colors=None,
)

_ = make_spearman_plot(
    ax2,
    "partial_noise_given_rg",
    "partial_rg_given_noise",
    r"Partial Spearman vs $S$ given $R_g$",
    r"Partial Spearman vs $R_g$ given $S$",
    show_raw_ref=True,
    line_colors=line_colors,
)

_ = make_spearman_plot(
    ax3,
    "spearman_vs_noise",
    "spearman_vs_rg_clean",
    r"Noise contamination (Spearman vs $S$)",
    r"Spearman vs $R_g$ where $|G| < 0.05$",
    show_raw_ref=True,
    line_colors=line_colors,
)

ycolname = "spearman_vs_noise"
x, xticks, xlabels  = get_r_scaled(rank_list, scale="log2")

for vname, vparams in plot_variants.items():
    df = recovery_df[vname]
    ax4.plot(x, df[ycolname], 'o-', label=vparams['label'], color=line_colors[vname])

ax4.axhline(0, color='gray', lw=1, ls='dotted')
ax4.axhspan(0.26, 0.59, color=line_colors['identity'], alpha=0.07)

ax4.set_xticks(xticks)
ax4.set_xticklabels(xlabels, rotation=90)
ax4.set_xlabel("Nuclear norm constraint r")
ax4.set_ylabel(r"Noise contamination (Spearman vs $S$)")


outfile_name=f"figures/pgc_recovery_contamination_tradeoff_78_traits"
plt.savefig(f"{outfile_name}.pdf", bbox_inches='tight')
plt.savefig(f"{outfile_name}.png", bbox_inches='tight')
plt.show()
