import numpy as np
import pandas as pd
import pickle
import sys
import os
import re
from collections import defaultdict
_lr_pat = re.compile(r"\s*\((left|right)\)\s*$", flags=re.IGNORECASE)
import matplotlib
import matplotlib.pyplot as plt
from pymir import mpl_stylesheet
from pymir import mpl_utils
import scipy.stats as sc_stats
import collections
import textalloc
from adjustText import adjust_text
# For OpenTargets API
import requests
import json# import matplotlib.font_manager as mpl_fm
# font_path = '/gpfs/commons/home/sbanerjee/nygc/Futura'
# mpl_fm.fontManager.addfont(font_path + '/FuturaStd-Book.otf') # Loads "Futura Std"
# mpl_stylesheet.banskt_presentation(splinecolor = 'black', dpi = 300)
# futura_book = FontProperties(fname='/gpfs/commons/home/sbanerjee/nygc/Futura/FuturaStd-Book.otf')
import matplotlib.font_manager as mpl_fm
font_path = '/gpfs/commons/home/sbanerjee/nygc/Boehringer_Forward_Latin_Cycrillic_Greek/Text'
mpl_fm.fontManager.addfont(font_path + '/BoehringerForwardText.ttf') # Loads "Boehringer Forward Text"
# mpl_stylesheet.banskt_presentation(splinecolor = 'black', dpi = 300)
# boehringer_font = FontProperties(fname='/gpfs/commons/home/sbanerjee/nygc/Boehringer_Forward_Latin_Cycrillic_Greek/Text/BoehringerForwardText.ttf')
# NYGC Color Palette
nygc_colors = {
'brown': '#7F0814',
'darkred': '#d42e12',
'orange': '#F37239',
'darkyellow': '#F79320',
'yellow': '#FFE438',
'darkblue': '#003059',
'blue': '#266DB6',
'lightblue': '#A3D5ED',
'darkgreen': '#006838',
'green': '#0A8A42',
'lightgreen': '#74B74A',
'yellowgreen': '#BAD75F',
'darkgray': '#1A1A1A',
'gray': '#666666',
'lightgray': '#CCCCCC',
'khaki': '#ADA194',
'darkkhaki': '#5E514D',
}
manuscript_colors = {
'brown': '#7F180D',
'darkred': '#C10020',
'darkyellow': '#FF6800',
'blue': '#00538A',
'green': '#0A8A42',
'lightgreen': '#74B74A',
'yellowgreen': '#93AA00',
'lightblue': '#A6BDD7',
'purple': '#803E75',
'olive': '#232C16',
'khaki': '#CEA262',
'orange': '#F37239',
'gray': '#666666',
'darkgray': '#1A1A1A',
'lightgray': '#CCCCCC',
}
boehringer_colors = {
'darkgreen' : '#08312A',
'accentgreen': '#00E47C',
'warmgray': '#E5E3DE',
'lightgray': '#F6F5F3',
'lightyellow': '#fbf9aa',
'yellow': '#ffe667',
'mediumyellow': '#ffd03d',
'mediumred': '#ee6541',
'mediumblue': '#6ad2e2',
'lightviolet': '#e0e1f6',
'violet': '#c5c3ee',
'mediumviolet': '#928bde',
}
# # Style sheet for manuscript
# mpl_stylesheet.banskt_presentation(dpi = 300, fontsize = 22,
# splinecolor = manuscript_colors['darkgray'], black = manuscript_colors['darkgray'])
# Style sheet for Boehringer
mpl_stylesheet.banskt_presentation(dpi = 300, fontsize = 22,
splinecolor = boehringer_colors['darkgreen'], black = boehringer_colors['darkgreen'])
plt.rcParams['font.family'] = 'Boehringer Forward Text'def iqr_outlier(x, axis = None, bar = 1.5, side = 'both'):
assert side in ['gt', 'lt', 'both'], 'Side should be `gt`, `lt` or `both`.'
def q1(x, axis = None):
return np.percentile(x, 25, axis = axis)
def q3(x, axis = None):
return np.percentile(x, 75, axis = axis)
d_iqr = sc_stats.iqr(x, axis = axis)
d_q1 = q1(x, axis = axis)
d_q3 = q3(x, axis = axis)
iqr_distance = np.multiply(d_iqr, bar)
stat_shape = list(x.shape)
if isinstance(axis, collections.abc.Iterable):
for single_axis in axis:
stat_shape[single_axis] = 1
else:
stat_shape[axis] = 1
if side in ['gt', 'both']:
upper_range = d_q3 + iqr_distance
upper_outlier = np.greater(x - upper_range.reshape(stat_shape), 0)
if side in ['lt', 'both']:
lower_range = d_q1 - iqr_distance
lower_outlier = np.less(x - lower_range.reshape(stat_shape), 0)
if side == 'gt':
return upper_outlier
if side == 'lt':
return lower_outlier
if side == 'both':
return np.logical_or(upper_outlier, lower_outlier)data_dir = "/gpfs/commons/home/sbanerjee/work/npd/PanUKB/data"
result_dir = "/gpfs/commons/home/sbanerjee/npddata/panukb/results/colormann-svd"
zscore_df = pd.read_pickle(os.path.join(data_dir, f"modselect/zscore_noRx.pkl"))
trait_df = pd.read_pickle(os.path.join(data_dir, f"modselect/traits_all_with_desc.pkl"))
variant_filename = f"{data_dir}/allvar.pruned.closesttss.hugo"
variant_df = pd.read_csv(variant_filename, sep = '\t')
nsample_filename = "/gpfs/commons/home/sbanerjee/work/npd/PanUKB/data/phe2483.SampleN.tsv"
nsample_df = pd.read_csv(nsample_filename, sep = '\t')methods = ["nnm", "nnm-sparse", "rpca"]
method_names = {
"nnm" : "NNM",
"nnm-sparse" : "NNM-Sparse",
"rpca" : "Robust PCA"
}
res_pklfile = {
"nnm": "nnm_model_r155872_iter1000.pkl",
"nnm-sparse": "nnm_sparse_model_r155872_iter1000.pkl",
"rpca": "rpca_model.pkl"
}
pca_comps = dict()
mf_comps = dict()
k = 200
for method in methods:
comps_filename = os.path.join(result_dir, method, "noRx", "pca_comps.pkl")
with open(comps_filename, "rb") as mfile:
pca_comps[method] = pickle.load(mfile)
mf_comps_filename = os.path.join(result_dir, method, "noRx", f"mf_comps_k{k}.pkl")
with open(mf_comps_filename, "rb") as mfile:
mf_comps[method] = pickle.load(mfile)
X = np.array(zscore_df.values.T)
X_cent = X - np.mean(X, axis = 0, keepdims = True)pheno_zindex = [int(x[1:]) for x in zscore_df.columns]
trait_df_noRx = trait_df.loc[trait_df['zindex'].isin(pheno_zindex)]
nsample_df_noRx = nsample_df.loc[trait_df_noRx.index]
trait_df_noRx.info()<class 'pandas.core.frame.DataFrame'>
Index: 2110 entries, 0 to 2482
Data columns (total 20 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 zindex 2110 non-null int64
1 trait_type 2110 non-null object
2 phenocode 2110 non-null object
3 pheno_sex 2110 non-null object
4 coding 267 non-null object
5 modifier 394 non-null object
6 description 2110 non-null object
7 description_more 1408 non-null object
8 coding_description 261 non-null object
9 category 2072 non-null object
10 BIN_QT 2110 non-null object
11 n_cases_EUR 2110 non-null int64
12 n_controls_EUR 1304 non-null float64
13 N 2110 non-null int64
14 Neff 2110 non-null float64
15 filename 2110 non-null object
16 aws_link 2110 non-null object
17 estimates.final.h2_observed 2106 non-null float64
18 long_description 2110 non-null object
19 short_description 2110 non-null object
dtypes: float64(3), int64(3), object(14)
memory usage: 346.2+ KB# focal_disease = {
# "opentarget_name" : "type 1 diabetes mellitus",
# "opentarget_id": "MONDO_0005147",
# "df_query_string": "Type 1 diabetes",
# }
focal_disease = {
"opentarget_name" : "type 2 diabetes mellitus",
"opentarget_id": "MONDO_0005148",
"df_query_string": "Type 2 diabetes",
}
trait_df_noRx.query(f"description == '{focal_disease['df_query_string']}'")| zindex | trait_type | phenocode | pheno_sex | coding | modifier | description | description_more | coding_description | category | BIN_QT | n_cases_EUR | n_controls_EUR | N | Neff | filename | aws_link | estimates.final.h2_observed | long_description | short_description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 459 | 460 | phecode | 250.2 | both_sexes | NaN | NaN | Type 2 diabetes | NaN | NaN | endocrine/metabolic | BIN | 22768 | 396181.0 | 418949 | 43061.32254 | phecode-250.2-both_sexes.tsv.bgz | https://pan-ukb-us-east-1.s3.amazonaws.com/sum... | 0.0484 | Type 2 diabetes | Type 2 diabetes |
zindex = trait_df_noRx.query(f"description == '{focal_disease['df_query_string']}'")["zindex"].values[0]
method = "nnm-sparse"
trait_indices = np.array(trait_df_noRx.index)
tidx = np.searchsorted(trait_indices, zindex - 1)
loadings, factors, cos2_pheno, cos2_variant, contribution_pheno, contribution_variant = mf_comps[method]fig = plt.figure(figsize = (12, 8))
ax1 = fig.add_subplot(111)
xvals = np.arange(cos2_pheno[tidx,:].shape[0])
yvals = cos2_pheno[tidx,:]
ax1.bar(xvals, yvals, align = 'center', width = 0.1)
for side in ['top', 'right']:
ax1.spines[side].set_visible(False)
ax1.tick_params(bottom=False)

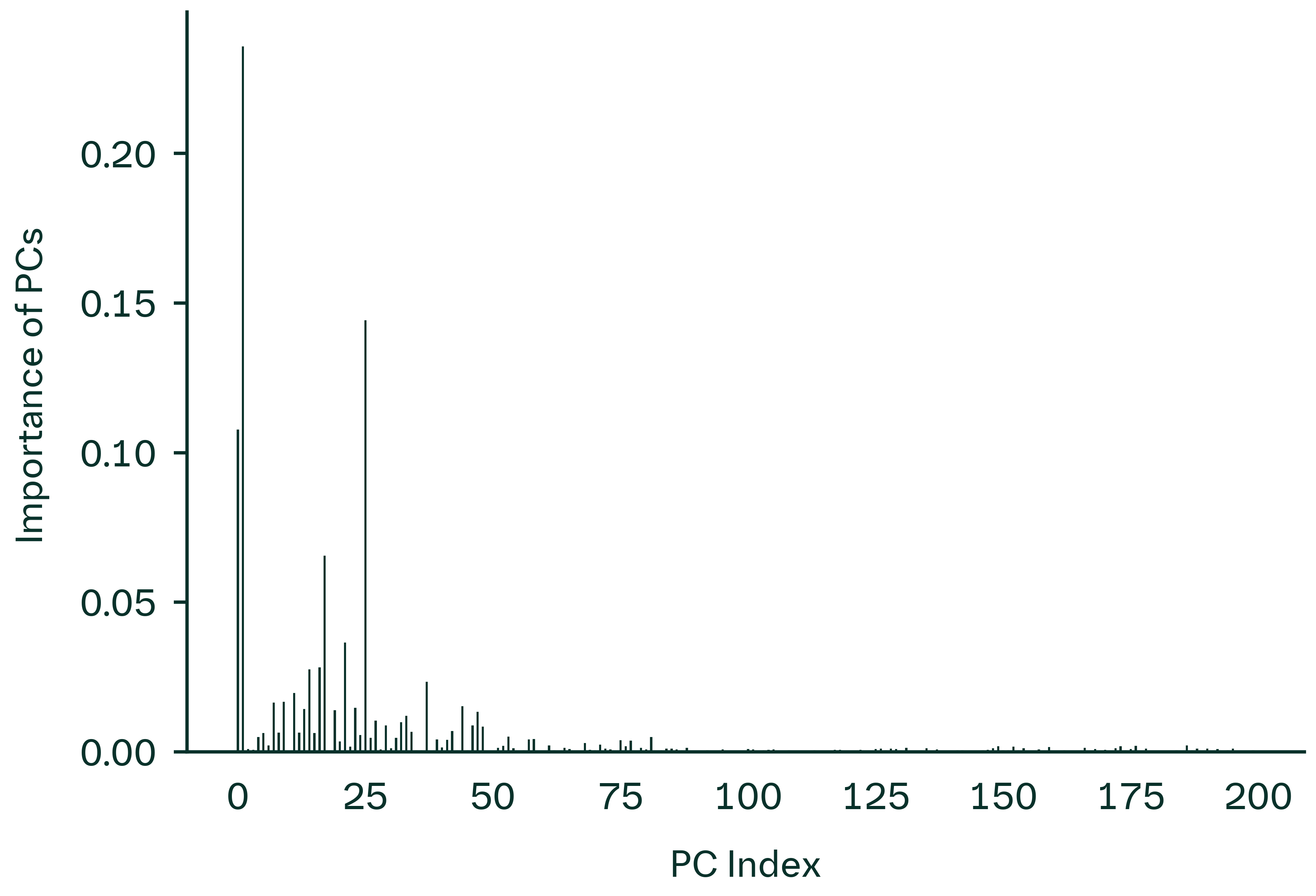

ax1.set_ylabel(f"Importance of PCs")
ax1.set_xlabel(f"PC Index")
plt.show()
np.argsort(cos2_pheno[tidx,:])[::-1]array([ 1, 25, 0, 17, 21, 16, 14, 37, 11, 9, 7, 44, 23,
13, 19, 47, 33, 27, 32, 29, 46, 48, 42, 34, 12, 8,
15, 5, 24, 53, 4, 81, 26, 31, 58, 39, 57, 41, 75,
77, 20, 68, 71, 186, 6, 61, 52, 176, 149, 76, 173, 22,
152, 159, 40, 64, 131, 166, 88, 79, 51, 154, 135, 30, 172,
148, 54, 195, 72, 126, 178, 128, 85, 188, 84, 190, 125, 65,
192, 175, 129, 100, 168, 2, 105, 80, 95, 73, 28, 86, 137,
157, 101, 3, 104, 69, 170, 122, 118, 147, 117, 150, 146, 45,
127, 108, 187, 153, 36, 70, 142, 56, 162, 35, 92, 194, 83,
184, 62, 103, 43, 151, 113, 141, 130, 199, 87, 134, 174, 136,
82, 98, 59, 179, 112, 189, 67, 106, 50, 169, 160, 96, 165,
161, 139, 124, 114, 99, 74, 185, 89, 91, 198, 140, 156, 120,
94, 102, 49, 171, 180, 63, 145, 107, 10, 109, 60, 133, 167,
111, 115, 55, 18, 123, 93, 164, 183, 193, 110, 191, 78, 66,
158, 132, 90, 143, 144, 38, 155, 116, 181, 97, 121, 177, 197,
119, 196, 163, 182, 138])def get_opentarget_score(gene_id):
# Build query string to get association information
query_string = """
query TargetAssociationsQuery(
$ensemblId: String!
$filter: String
$sortBy: String!
$enableIndirect: Boolean!
) {
target(ensemblId: $ensemblId) {
id
approvedSymbol
associatedDiseases(
orderByScore: $sortBy
BFilter: $filter
enableIndirect: $enableIndirect
) {
count
rows {
disease {
id
name
}
score
}
}
}
}
"""
# Set variables object of arguments to be passed to endpoint
variables = {
"ensemblId": gene_id,
"filter": focal_disease["opentarget_name"],
"sortBy": "score",
"enableIndirect": False
}
# Set base URL of GraphQL API endpoint
base_url = "https://api.platform.opentargets.org/api/v4/graphql"
# print (gene_id)
# Perform POST request and check status code of response
r = requests.post(base_url, json={"query": query_string, "variables": variables})
# print(r.status_code)
# Transform API response from JSON into Python dictionary and print in console
api_response = json.loads(r.text)
# print(api_response)
score = 0.0
if api_response['data']['target'] is not None:
associated_diseases = api_response['data']['target']['associatedDiseases']['rows']
for d in associated_diseases:
if d['disease']['id'] == focal_disease["opentarget_id"]:
score = d['score']
# print(score)
return score
def get_variant_names(df):
vstr_list = list()
for i in range(df.shape[0]):
vstr = 'chr' + df.iloc[i][['chr', 'rsid', 'Gene_name']].astype('str').str.cat(sep=' | ')
gene_id = df.iloc[i]['ensembl_gene_id']
if not pd.isna(gene_id):
assoc_score = get_opentarget_score(gene_id)
vstr += f" | {assoc_score:.3f}"
else:
vstr += f" | NaN"
vstr_list.append(vstr)
return vstr_listtop_factor1 = np.argsort(cos2_pheno[tidx,:])[::-1][0]
top_factor2 = np.argsort(cos2_pheno[tidx,:])[::-1][1]
top_factor3 = np.argsort(cos2_pheno[tidx,:])[::-1][2]
top_factor4 = np.argsort(cos2_pheno[tidx,:])[::-1][3]np.sort(cos2_pheno[tidx,:])[::-1][:4]array([0.23555979, 0.14394011, 0.10744744, 0.06529156])n_plot_variants = 20
top_variant_idx = np.argsort(contribution_variant[:, top_factor2])[::-1][:n_plot_variants]
top_variant_df = variant_df.loc[zscore_df.index.to_numpy()[top_variant_idx]]
top_variant_score = contribution_variant[top_variant_idx, top_factor2]
top_variant_names = get_variant_names(top_variant_df)cts_resdir = "/gpfs/commons/home/sbanerjee/npddata/panukb/results/ldsc"
cts_resfile = os.path.join(cts_resdir, method, "enrich", f"factor_{top_factor2}_sumstat.Multi_tissue_gene_expr.cell_type_results.txt")
n_plot_tissues = 10
cts_df = pd.read_csv(cts_resfile, sep="\t").sort_values(by=["Coefficient_P_value"]).head(n_plot_tissues)
cts_df| Name | Coefficient | Coefficient_std_error | Coefficient_P_value | |
|---|---|---|---|---|
| 26 | Pancreas | 1.001480e-07 | 3.094918e-08 | 0.000606 |
| 104 | A03.620.Liver | 8.893163e-08 | 3.108535e-08 | 0.002112 |
| 78 | A03.556.249.124.Ileum | 1.182039e-07 | 4.152288e-08 | 0.002209 |
| 0 | Breast_Mammary_Tissue | 7.025016e-08 | 2.680537e-08 | 0.004387 |
| 105 | A03.556.124.369.Intestinal.Mucosa | 1.062804e-07 | 4.059941e-08 | 0.004425 |
| 106 | A05.810.453.Kidney | 7.182063e-08 | 2.803494e-08 | 0.005206 |
| 182 | A10.165.114.830.750.Subcutaneous.Fat | 7.103804e-08 | 2.815409e-08 | 0.005815 |
| 183 | A11.872.190.Embryonic.Stem.Cells | 8.099203e-08 | 3.233840e-08 | 0.006131 |
| 27 | Small_Intestine_Terminal_Ileum | 8.611025e-08 | 3.465571e-08 | 0.006482 |
| 28 | Kidney_Cortex | 7.244011e-08 | 2.935974e-08 | 0.006806 |
cts_df["Name"] = ["Pancreas", "Liver", "Ileum", "Breast Mammary Tissue", "Intestinal Mucosa",
"Kidney", "Subcutaneous Fat", "Embryonic Stem Cells",
"Small Intestine Terminal Ileum", "Kidney Cortex"]
cts_df| Name | Coefficient | Coefficient_std_error | Coefficient_P_value | |
|---|---|---|---|---|
| 26 | Pancreas | 1.001480e-07 | 3.094918e-08 | 0.000606 |
| 104 | Liver | 8.893163e-08 | 3.108535e-08 | 0.002112 |
| 78 | Ileum | 1.182039e-07 | 4.152288e-08 | 0.002209 |
| 0 | Breast Mammary Tissue | 7.025016e-08 | 2.680537e-08 | 0.004387 |
| 105 | Intestinal Mucosa | 1.062804e-07 | 4.059941e-08 | 0.004425 |
| 106 | Kidney | 7.182063e-08 | 2.803494e-08 | 0.005206 |
| 182 | Subcutaneous Fat | 7.103804e-08 | 2.815409e-08 | 0.005815 |
| 183 | Embryonic Stem Cells | 8.099203e-08 | 3.233840e-08 | 0.006131 |
| 27 | Small Intestine Terminal Ileum | 8.611025e-08 | 3.465571e-08 | 0.006482 |
| 28 | Kidney Cortex | 7.244011e-08 | 2.935974e-08 | 0.006806 |
### Function for collapsing trait labels
_lr_pat = re.compile(r"\s*\((left|right)\)\s*$", flags=re.IGNORECASE)
def split_lr_suffix(label):
label = label.strip()
m = _lr_pat.search(label)
if not m:
return label, None
side = m.group(1).lower()
base = _lr_pat.sub("", label).strip()
return base, side
def canonical_label_for_grouping(label):
"""
Label used for grouping/collapsing.
- Left/right suffixes are stripped elsewhere.
- Additionally, treat bare 'FVC' and bare 'FEV1' as the same group
as their more specific forms by mapping them to themselves
(but we will group them with 'FVC (best)' etc. by stripping parentheses only for these targets).
"""
s = label.strip()
# special: collapse bare FVC/FEV1 with their parenthetical variants by mapping
# both 'FVC' and 'FVC (...)' -> 'FVC', but ONLY for these two acronyms.
if s.startswith("FVC"):
return "FVC"
if s.startswith("FEV1"):
return "FEV1"
return s
def collapse_lr_only(text_idx_list, txt_list):
"""
Only collapse labels that have (left)/(right) suffix.
Return:
rep_indices: indices used for text placement (one per group)
rep_labels: displayed labels (base)
groups: dict rep_index -> list of member indices (1 or 2)
"""
groups_by_base = defaultdict(list)
singles = [] # items with no (left/right)
for idx, lab in zip(text_idx_list, txt_list):
base, side = split_lr_suffix(lab)
if side is None:
singles.append((idx, lab))
else:
groups_by_base[base].append((idx, side))
rep_indices, rep_labels, groups = [], [], {}
# keep non-LR labels as-is
for idx, lab in singles:
rep_indices.append(idx)
rep_labels.append(lab)
groups[idx] = [idx]
# collapse LR groups
for base, items in groups_by_base.items():
# if we have both sides, collapse to one label; otherwise keep as one label anyway
rep_idx = items[0][0] # representative for placing text
member_indices = [i for (i, _) in items]
rep_indices.append(rep_idx)
rep_labels.append(base) # drop "(left)/(right)"
groups[rep_idx] = member_indices
return rep_indices, rep_labels, groups
def collapse_lr_plus_custom(text_idx_list, txt_list):
"""
Collapses:
1) (left)/(right) pairs -> base label
2) FVC* -> 'FVC' and FEV1* -> 'FEV1' (so bare and parenthetical variants get one label)
Returns rep_indices, rep_labels, groups (rep_idx -> member indices)
"""
# group key -> list of indices (members) and a display label
buckets = defaultdict(list)
display_label = {}
for idx, lab in zip(text_idx_list, txt_list):
# strip left/right for display + grouping
base, side = split_lr_suffix(lab)
# apply custom canonicalization for grouping
key = canonical_label_for_grouping(base)
buckets[key].append(idx)
display_label.setdefault(key, key) # display 'FVC'/'FEV1' etc.
rep_indices, rep_labels, groups = [], [], {}
for key, members in buckets.items():
rep_idx = members[0] # representative point for textalloc’s connector
rep_indices.append(rep_idx)
rep_labels.append(display_label[key])
groups[rep_idx] = members
return rep_indices, rep_labels, groups
def allocate_with_multi_arrows(fig, ax, xvals, yvals,
text_idx_list, txt_list,
scatter_plot,
text_color = 'black',
text_arrow_color = 'black',
textsize = 10):
# rep_idx_list, rep_txt_list, groups = collapse_lr_only(text_idx_list, txt_list)
rep_idx_list, rep_txt_list, groups = collapse_lr_plus_custom(text_idx_list, txt_list)
if len(rep_idx_list) == 0:
return
rep_idx = np.array(rep_idx_list, dtype=int)
# capture existing Text artists
before = set(ax.texts)
textalloc.allocate_text(
fig, ax,
xvals[rep_idx], yvals[rep_idx],
rep_txt_list,
scatter_plot=scatter_plot,
textsize=textsize,
textcolor="black",
linecolor=manuscript_colors["gray"],
)
# new Text artists created by textalloc
after = [t for t in ax.texts if t not in before]
# label -> Text (take last if repeated)
label2text = {}
for t in after:
label2text[t.get_text()] = t
# Draw ONLY extra arrows for additional group members (avoid double arrow to rep_idx)
for rep_i, members in groups.items():
if len(members) <= 1:
continue
label = rep_txt_list[rep_idx_list.index(rep_i)]
t = label2text.get(label)
if t is None:
continue
tx, ty = t.get_position()
for j in members:
if j == rep_i:
continue # textalloc already connected to rep_i
ax.annotate(
"",
xy=(xvals[j], yvals[j]),
xytext=(tx, ty),
arrowprops=dict(arrowstyle="-", color=manuscript_colors["gray"], lw=1),
zorder=2,
)import matplotlib.gridspec as gridspec
fig = plt.figure(figsize = (22, 22))
# fig = plt.figure(figsize = (20, 20))
# plot_colors_trait_points_highlight = manuscript_colors['darkyellow']
# plot_colors_trait_points_focal = manuscript_colors['purple']
# plot_colors_trait_points = manuscript_colors['lightgray']
# plot_colors_text = 'black'
# plot_colors_text_lines = manuscript_colors['gray']
# plot_colors_bar_genes = manuscript_colors['darkred']
# plot_colors_bar_tissues = manuscript_colors['darkred']
plot_colors_trait_points_highlight = boehringer_colors['accentgreen']
plot_colors_trait_points_focal = boehringer_colors['mediumred']
plot_colors_trait_points = boehringer_colors['warmgray']
plot_colors_text = boehringer_colors['darkgreen']
plot_colors_text_lines = boehringer_colors['darkgreen']
plot_colors_bar_genes = boehringer_colors['accentgreen']
plot_colors_bar_tissues = boehringer_colors['violet']
gs = fig.add_gridspec(2, 2, height_ratios=(1, 1), width_ratios = (2,1), wspace=0, hspace=0)
ax1 = fig.add_subplot(gs[0,0])
ax2 = fig.add_subplot(gs[1,0])
gs_rcol = gridspec.GridSpecFromSubplotSpec(2, 1, subplot_spec=gs[0:2,1], height_ratios = (2, 1))
axr1 = fig.add_subplot(gs_rcol[0, 0])
axr2 = fig.add_subplot(gs_rcol[1, 0])
# PC1 vs PC2
factor_on_x = top_factor3
factor_on_y = top_factor1
xvals = - loadings[:, factor_on_x]
yvals = loadings[:, factor_on_y]
# Combine outliers in x-axis and y-axis
# outlier_idx_x = np.where(iqr_outlier(xvals, axis = 0, bar = 5.0))[0]
# outlier_idx_y = np.where(iqr_outlier(yvals, axis = 0, bar = 5.0))[0]
outlier_idx_x = np.argsort(contribution_pheno[:, factor_on_x])[::-1][:20]
outlier_idx_y = np.argsort(contribution_pheno[:, factor_on_y])[::-1][:15]
outlier_idx = np.union1d(outlier_idx_x, outlier_idx_y)
x_center = np.mean(ax1.get_xlim())
common_idx = np.setdiff1d(np.arange(xvals.shape[0]), outlier_idx)
txt_list = []
text_idx_list = []
for i in outlier_idx:
if i != tidx:
txt = trait_df_noRx.loc[trait_indices[i]]['short_description'].strip()
txt_list.append(txt)
text_idx_list.append(i)
# Mark Type 2 diabetes
txt_list.append("Type 2 Diabetes")
text_idx_list.append(tidx)
scatter_plot = ax1.scatter(xvals[outlier_idx], yvals[outlier_idx],
alpha = 1.0, s = 200,
edgecolors = plot_colors_trait_points_highlight,
color = plot_colors_trait_points_highlight)
ax1.scatter(xvals[tidx], yvals[tidx],
s = 250,
edgecolors = plot_colors_trait_points_focal,
color = plot_colors_trait_points_focal)
ax1.scatter(xvals[common_idx], yvals[common_idx],
alpha = 0.1, s = 100, color = plot_colors_trait_points)
# # Mark using textalloc package
# if len(text_idx_list) > 0:
# txt_idx = np.array(text_idx_list)
# textalloc.allocate_text(fig, ax1, xvals[txt_idx], yvals[txt_idx], txt_list,
# # x_scatter = xvals, y_scatter = yvals,
# scatter_plot = scatter_plot,
# textsize = 10, textcolor = 'black',
# linecolor = manuscript_colors['gray'])
if len(text_idx_list) > 0:
allocate_with_multi_arrows(
fig, ax1,
xvals, yvals,
text_idx_list, txt_list,
scatter_plot = scatter_plot,
text_color = plot_colors_text,
text_arrow_color = plot_colors_text_lines,
textsize=10
)
# # Mark using adjustText package
# # https://github.com/Phlya/adjustText
# annots = []
# for i, txt in zip(text_idx_list, txt_list):
# if xvals[i] > x_center:
# annots += [ax1.annotate(txt, (xvals[i], yvals[i]), fontsize = 6, ha = 'right')]
# else:
# annots += [ax1.annotate(txt, (xvals[i], yvals[i]), fontsize = 6)]
# adjust_text(annots, arrowprops=dict(arrowstyle='-', color = manuscript_colors['gray']))
# ax1.set_xticks([-0.010, -0.005, 0.0, 0.005, 0.010])
for side, border in ax1.spines.items():
if side == 'left':
border.set_bounds(-0.06, 0.04)
elif side == 'bottom':
border.set_bounds(-0.06, 0.04)
else:
border.set_visible(False)
ax1.set_xlabel(f"Factor {factor_on_x + 1}")
ax1.set_ylabel(f"Factor {factor_on_y + 1}")
# PC26 vs PC18 on ax2
factor_on_x = top_factor2
factor_on_y = top_factor4
xvals = loadings[:, factor_on_x]
yvals = - loadings[:, factor_on_y]
# Combine outliers in x-axis and y-axis
# outlier_idx_x = np.where(iqr_outlier(xvals, axis = 0, bar = 5.0))[0]
# outlier_idx_y = np.where(iqr_outlier(yvals, axis = 0, bar = 5.0))[0]
outlier_idx_x = np.argsort(contribution_pheno[:, factor_on_x])[::-1][:20]
outlier_idx_y = np.argsort(contribution_pheno[:, factor_on_y])[::-1][:20]
outlier_idx = np.union1d(outlier_idx_x, outlier_idx_y)
x_center = np.mean(ax2.get_xlim())
common_idx = np.setdiff1d(np.arange(xvals.shape[0]), outlier_idx)
txt_list = []
text_idx_list = []
for i in outlier_idx:
if i != tidx:
txt = trait_df_noRx.loc[trait_indices[i]]['short_description'].strip()
txt_list.append(txt)
text_idx_list.append(i)
# Mark Type 2 diabetes
txt_list.append("Type 2 Diabetes")
text_idx_list.append(tidx)
scatter_plot = ax2.scatter(xvals[outlier_idx], yvals[outlier_idx],
alpha = 1.0, s = 200,
edgecolors = plot_colors_trait_points_highlight,
color = plot_colors_trait_points_highlight)
ax2.scatter(xvals[tidx], yvals[tidx],
s = 250,
edgecolors = plot_colors_trait_points_focal,
color = plot_colors_trait_points_focal)
ax2.scatter(xvals[common_idx], yvals[common_idx],
alpha = 0.1, s = 100, color = plot_colors_trait_points)
#### Mark using textalloc package
if len(text_idx_list) > 0:
txt_idx = np.array(text_idx_list)
textalloc.allocate_text(fig, ax2, xvals[txt_idx], yvals[txt_idx], txt_list,
# x_scatter = xvals, y_scatter = yvals,
scatter_plot = scatter_plot,
textsize = 10, textcolor = plot_colors_text,
linecolor = plot_colors_text_lines)
#### Mark using adjustText package
#### https://github.com/Phlya/adjustText
# annots = []
# for i, txt in zip(text_idx_list, txt_list):
# if xvals[i] > x_center:
# annots += [ax2.annotate(txt, (xvals[i], yvals[i]), fontsize = 6, ha = 'right')]
# else:
# annots += [ax2.annotate(txt, (xvals[i], yvals[i]), fontsize = 6)]
# adjust_text(annots, arrowprops=dict(arrowstyle='-', color = manuscript_colors['gray']))
# ax1.set_xticks([-0.010, -0.005, 0.0, 0.005, 0.010])
for side, border in ax2.spines.items():
if side == 'left':
border.set_bounds(-0.015, 0.02)
elif side == 'bottom':
border.set_bounds(-0.01, 0.015)
else:
border.set_visible(False)
ax2.set_xlabel(f"Factor {factor_on_x + 1}")
ax2.set_ylabel(f"Factor {factor_on_y + 1}")
# Contribution of variants
xvals = top_variant_score
yvals = np.arange(n_plot_variants)[::-1]
axr1.barh(yvals, xvals,
align = 'center',
height = 0.7,
color = plot_colors_bar_genes,
edgecolor = 'None')
axr1.set_yticks(yvals)
axr1.set_yticklabels(top_variant_names)
for side in ['top', 'right', 'left']:
axr1.spines[side].set_visible(False)
axr1.tick_params(left=False)
axr1.set_xlabel(f"Contribution of variants to F{top_factor2 + 1}", horizontalalignment='left', x = -0.1)
axr1.set_xticks([0, 0.001, 0.002])
# ax1.set_title(method_names[method])
# Enrichment
xvals = -np.log10(cts_df["Coefficient_P_value"].to_numpy())
yvals = np.arange(n_plot_tissues)[::-1]
axr2.barh(yvals, xvals,
align = 'center',
height = 0.7,
color = plot_colors_bar_tissues,
edgecolor = 'None')
axr2.set_yticks(yvals)
axr2.set_yticklabels(cts_df["Name"])
for side in ['top', 'right', 'left']:
axr2.spines[side].set_visible(False)
axr2.tick_params(left=False)
axr2.set_xlabel(r"$-\log_{10}(P)$")
# Panel labels

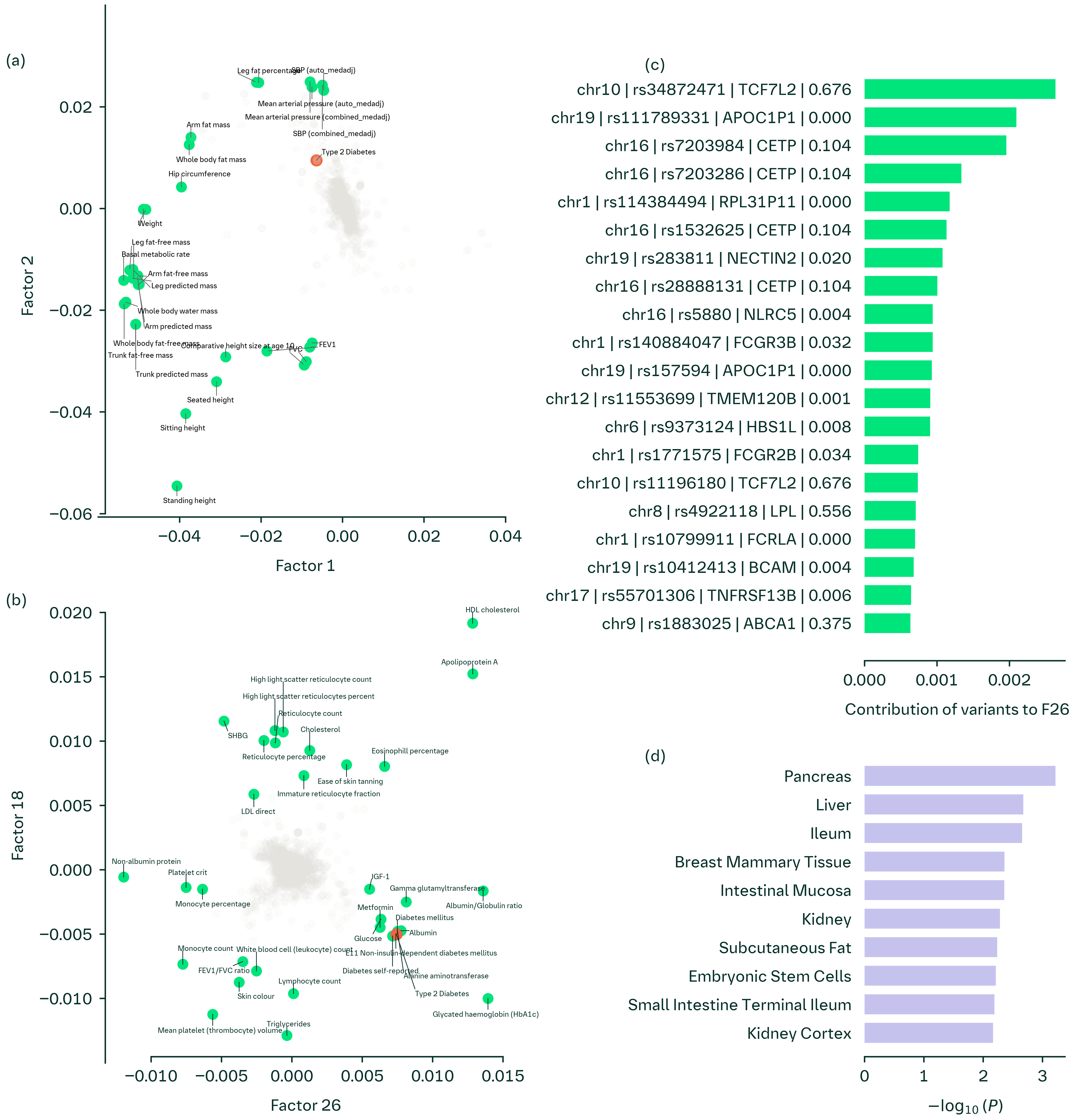

ax1.text(-0.25, 0.97, "(a)", transform=ax1.transAxes, fontweight='bold')
ax2.text(-0.25, 0.97, "(b)", transform=ax2.transAxes, fontweight='bold')
axr1.text(-1.10, 0.97, "(c)", transform=axr1.transAxes, fontweight='bold')
axr2.text(-1.10, 0.97, "(d)", transform=axr2.transAxes, fontweight='bold')
# gs.tight_layout(fig)
# plt.savefig('../plots/colormann-manuscript/clorinn_panukb_t2d.pdf', bbox_inches='tight')
# plt.show()
gs.tight_layout(fig)
plt.savefig('../plots/bi-2026/clorinn_panukb_t2d.png', transparent = True, bbox_inches='tight')
plt.show()

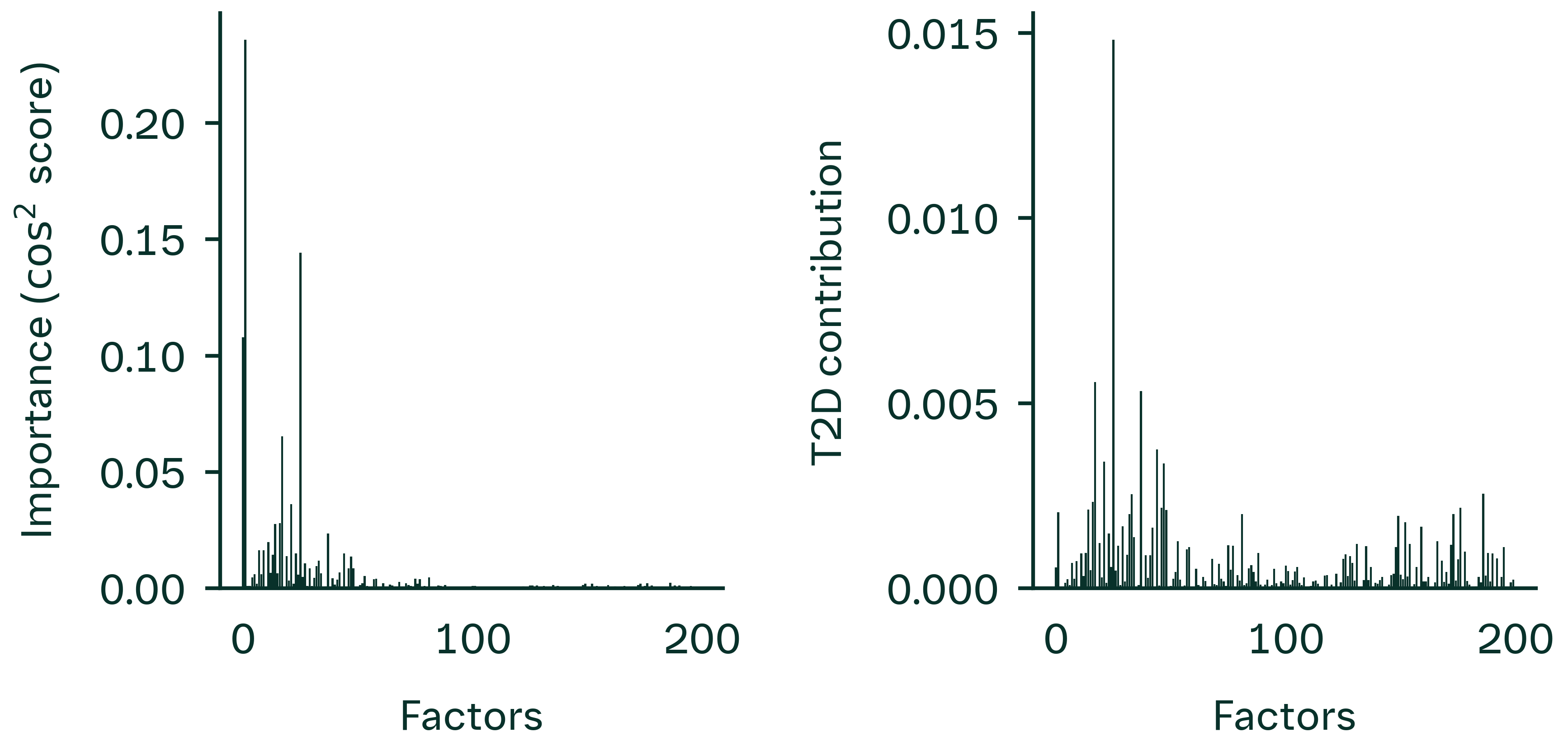

fig = plt.figure(figsize = (12, 6))
ax1 = fig.add_subplot(121)
ax2 = fig.add_subplot(122)
xvals = np.arange(cos2_pheno[tidx,:].shape[0])
yvals = cos2_pheno[tidx,:]
ax1.bar(xvals, yvals, align = 'center', width = 0.1)
xvals = np.arange(contribution_pheno[tidx, :].shape[0])
yvals = contribution_pheno[tidx, :]
ax2.bar(xvals, yvals, align = 'center', width = 0.05)
for side in ['top', 'right']:
ax1.spines[side].set_visible(False)
ax2.spines[side].set_visible(False)
ax1.tick_params(bottom=False)
ax1.set_ylabel(f"Importance ($\cos^2$ score)")
ax1.set_xlabel(f"Factors")
ax2.tick_params(bottom=False)
ax2.set_ylabel(f"T2D contribution")
ax2.set_xlabel(f"Factors")
# plt.tight_layout()
# plt.savefig('../plots/colormann-manuscript/panukb_t2d_cos2_contr.pdf', bbox_inches='tight')
# plt.show()
plt.tight_layout()
plt.savefig('../plots/bi-2026/panukb_t2d_cos2_contr.png', transparent = True, bbox_inches='tight')
plt.show()
contribution_pheno[tidx, 25]0.01480045156111938
